In the evolving world of architectural design and engineering, the use of thin brick in precast concrete represents a significant advancement, combining traditional aesthetics with modern construction technology. Thin brick precast has become a standard approach across many building applications, elevating aesthetics while enhancing structural integrity and sustainability.
Let’s explore the versatility of thin brick precast concrete in achieving architectural excellence, the perfect precursor to the PCI webinar, “The Art of Thin Brick Precast Facades.”
Thin Brick Is Creativity Plus Practicality
Thin brick precast facades offer architects and builders an attractive blend of clay’s timeless, classic masonry appearance and the robust, versatile characteristics of precast concrete—without the extensive labor and time required for traditional brick laying.
This clay-faced precast component has transformed over the decades into a preferred choice for designers seeking limitless aesthetic possibilities alongside practical benefits like strength, durability, resiliency, and cost-efficiency.
Using a thin brick facade method creates a uniformity and quality that can be challenging to achieve with hand-laid brick. It streamlines the construction process, reducing the number of trades needed on-site and minimizing potential delays due to weather or labor issues.
Thin brick facades also allow for creative design flexibility, enabling the incorporation of various colors and textures that enhance the visual appeal of any building. Thin brick options come in many different colors, sizes, and shapes and in flats, corners, and edge caps. Some manufacturers can even develop unique shapes like sill pieces, half brick, 45-degree corners, and other styles.
Enhanced Durability & Sustainability of Thin Brick
One of the key benefits of using thin brick in precast panels is the enhanced durability and ease of maintenance it offers. Precast concrete is known for its longevity and resistance to environmental stresses and hazards, such as moisture, temperature changes, and severe weather events.
Clay products like thin brick are integrated directly into precast concrete panels, forming a robust and enduring barrier wall system. The precast process ensures exceptional dimensional accuracy and quality oversight. Unlike traditional site-laid masonry which may suffer from inconsistent curing and mortar quality, the concrete mixtures, batching, and curing conditions in precast are meticulously managed to maintain high standards as part of PCI certification.
This makes thin brick precast facades ideal for both new constructions and renovations where long-term durability is crucial. The insulated properties of these panels contribute to energy efficiency as well, helping buildings meet modern sustainability standards.
Technical Considerations & Applications of Thin Brick
Incorporating thin brick into precast concrete requires careful consideration of technical aspects to ensure structural integrity and aesthetic consistency—but casting thin masonry products in precast concrete panels is nothing new.
Some of the earliest examples of modern construction techniques date back to the late 1960s, many of which remain in excellent condition today to showcase the enduring quality of the construction. Recent developments in formliners, thin brick, and terra cotta panels, combined with innovative approaches from precast concrete producers, have opened up a vast array of possibilities for architectural facades.
To work with thin brick, designers must collaborate with experienced precast providers to select appropriate materials and ensure precise manufacturing techniques are applied to achieve their desired outcomes. The versatility of thin brick precast concrete makes it suitable for a wide range of applications, from commercial buildings and educational institutions to residential projects and parking structures.
Metal ties aren’t required when attaching thin masonry products to precast concrete panels. Masonry products that meet PCI’s specification for embedded clay thin brick have face size and dimensional tolerances, must meet minimum pull-out strength requirements; and must have no detectable deterioration (spalling, cracking, or breaking) after 300 cycles when tested in accordance with ASTM C666 for freeze thaw resistance. The full standard and more is outlined in PCI’s Clay Product-Faced Precast Concrete Designer’s Notebook, which reviews the design and production considerations for thin and half brick, ceramic tile, and terra cotta.
Real-World Implementations of Thin Brick
Various projects have demonstrated the practical and aesthetic advantages of thin brick precast concrete. Whether it's enhancing the facade of a school building or providing a cost-effective solution for a large commercial complex, thin brick precast concrete has proven to be a valuable choice for many architects and developers.
Real-world case studies from PCI Mid-Atlantic highlight the material's adaptability and effectiveness in meeting diverse architectural needs.

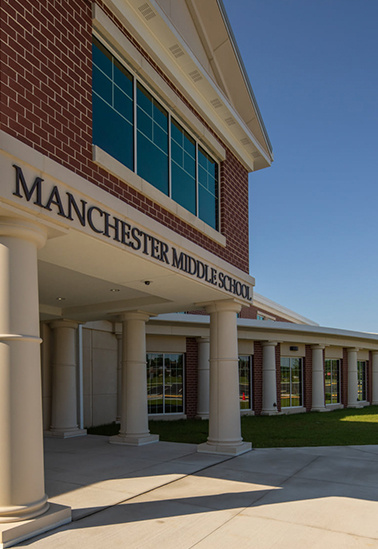

Manchester Middle School: Chesterfield County Public Schools sought to replace their long-standing middle school, originally built in the 1960s. Architectural precast concrete wall panels embedded with thin brick were chosen as the cladding material for a new two-story school building. 59,700 square feet of precast concrete architectural walls with over 20,000 square feet of thin brick gave the school an aesthetically striking fresh appearance.
ChristianaCare Health Services Visitors Parking Garage: Recent campus upgrades to ChristianaCare demanded a new parking garage to accommodate its medical office building. Damian Larkin, PE, LEED AP, of Walker Consultants said that from the start, “ChristianaCare was dedicated to using a precast concrete structural system with thin brick to match the recently completed adjacent hospital tower expansion project.” Embedded thin brick and light-sandblasted finishes became exciting architectural features for the six-level parking structure.
The Revetment House Multifamily Housing: A six-story multifamily rental building was constructed to contain 163 luxury apartments, from studio spaces to three-bedroom residences. A hybrid structural precast concrete system was chosen to satisfy the owner’s speedy construction timeline. The team of architects, structural engineers, and contractors united to develop a facade at scale with surroundings using a sophisticated pattern of thin brick with precast sills and details.
Learn More with Our On-Demand Webinar
We invite all aspiring and practicing architects, engineers, and students to join a free course and explore the extensive possibilities offered by thin brick precast facades. Whether you're looking to enhance your knowledge for a future project or simply interested in the latest trends in construction technology, this on-demand webinar is designed to inspire and inform.
Register for “The Art of Thin Brick Precast Facades,” a free webinar offering 1.5 PDH or HSW/LU credits. Earn continuing education credits and improve your knowledge of precast concrete aesthetics.
This program covers aesthetic options available when using thin brick in building enclosure precast systems, technical aspects when designing thin brick in precast panels, and the resiliency and insulated performance properties of precast building materials. Presenters include leaders from Endicott Brick, AP Formliners, Belden Tri-State Building Materials, and the Director of Architectural Systems at the Precast/Prestressed Concrete Institute (PCI).
For further reading before you take the course, you can read our previous blog on thin brick and architectural terra cotta in precast concrete panels.
